Universal for cleaning glasses and small tableware, meeting the multi-category cleaning needs of overseas stores without purchasing multiple devices separately, reducing investment costs. OEM customization is supported to match brand appearance and functional needs, fitting the brand operation demands of overseas merchants.
| No. | Item | Specification |
| 1 | Overall Dimension | 600×680×860mm |
| 2 | Washing Capacity | 60 baskets/h |
| 3 | Washing Time | 60S/90S/120S |
| 4 | Washing Temperature | 55~65℃ |
| 5 | Disinfection Temperature | 85~95℃ |
| 6 | Basket Size | 500×500×100mm |
| 7 | Water Consumption | 80L |
| 8 | Electrical Requirements | 380V/50Hz/5N/6m2 |
| 9 | Total Power | 11.2KW |

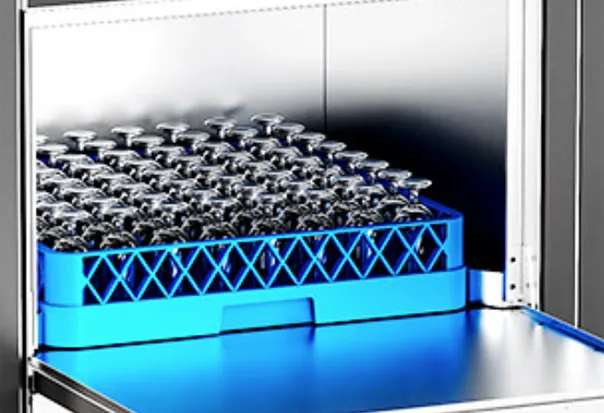

Designed specifically for glassware, max washing capacity 60 baskets/hour, 3 selectable cycles (60S/90S/120S) for different cleanliness standards.

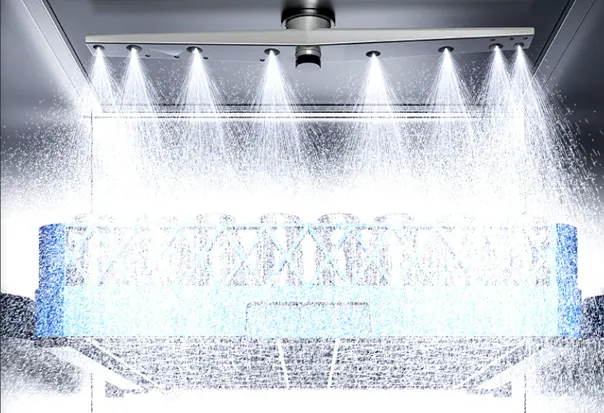

304 stainless steel high-precision double-tube & dual-pump spray arms, 360° split design, uniform water distribution and moderate pressure to protect glassware from scratches.
Sensitive door control: start on close, stop on open. Button-free, easy to operate (no buttons except open/close), suitable for efficient kitchen work.
Intelligent water & temperature control: auto-refill, auto-stop, temperature maintenance, zero water/electricity waste, suitable for glassware washing temperature requirements.
Independent dual-pump system: separate drive for washing/rinsing disinfection, controllable pressure and longer service life, ensuring glassware is clean and residue-free.
Compact & Space-Saving Design
Features a slim, under-counter fit that integrates seamlessly into various kitchen layouts without occupying valuable space.

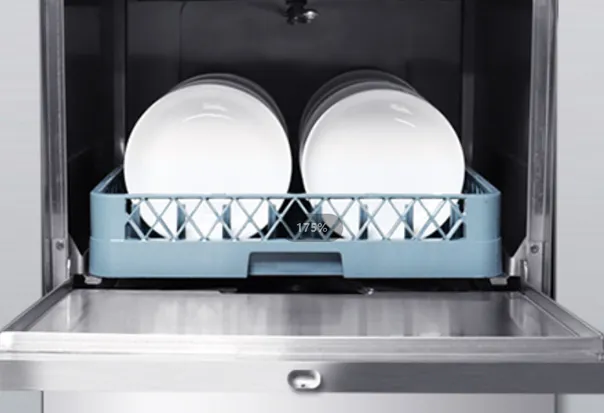

Versatile Cleaning for All Dish Types
Equipped with multiple cleaning modes to effectively handle greasy pots and pans as well as delicate glassware, delivering thorough and gentle results.
Energy- and Water-Efficient Performance
Designed with low power consumption to reduce electricity bills, combined with an optimized water circulation system that maximizes efficiency and minimizes water waste.
Flexible Configuration Options
Customers can customize the setup based on their specific requirements, including: working tables (for soiled and clean dishes), high-pressure rinse spray, dishwashing baskets (suitable for plates, wine glasses, and cups), automatic detergent dispenser, commercial dishwashing detergent, and built-in drying system.
Water Connection Specifications
Water inlet: DN15 (4-pipe connection) for direct hookup to the main water supply.
Operating water pressure range: 0.3–5 kg/cm² (minimum 0.3 kg/cm²).
Inlet water hardness: 0.032–0.103 g/L. Drain outlet diameter: 50 mm.
Fully Customizable Design
Dimensions, materials, as well as ODM and OEM services, can all be tailored to meet individual client needs and branding requirements.
